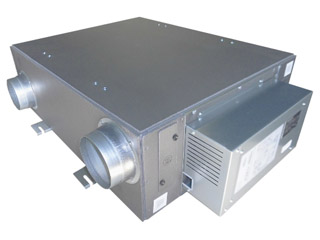

ES-5

ES-5

Environment Total heat exchangers

Download Documents

Catalogue Download
Instruction Manual Download

Product Description

  • Total heat exchange efficiency of more than 70% at a basic processing air volume of 250 [m3/h]
    Ensures efficient energy transfer for optimal indoor air quality and system performance.
  • DC brushless motor installed
    Offers high efficiency, low noise, and extended durability compared to conventional motors.
  • 3-stage air flow switchable by volume switch (6 stages in total)
    Allows precise air volume control for varying room sizes and ventilation needs.
  • Energy saving
    Specific power consumption is 0.6W (m3/h) or less
    (Specific power consumption = power consumption / treated air volume)
  • Full surface (6 faces) with insulation to prevent condensation
    All surfaces are thermally insulated to minimize condensation risk and improve performance.
  • Can be installed upside down (option)
    Flexible installation options allow use in tight or unconventional spaces.
  • With filter clogging lamp
    Equipped with a differential pressure switch on the outdoor air side to detect and notify filter clogging for timely maintenance.
Applications:
  • Air conditioning
  • Ventilation
